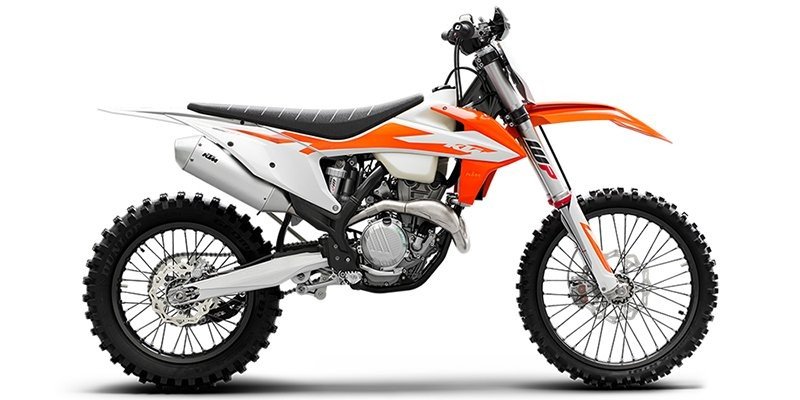

2020 KTM XC 350 F

← Go Back
Price: $8,499
Check Availability
  • Stock #: U72882
  • VIN: VBKXCN43XLM272882
  • Engine: 349.7 cc (21.3 ci) Liquid cooled Single-Cylinder
  • Exterior Color: GRAY
  • Transmission: Manual
Quick Quote
Schedule Test Drive
Get Pre-Approved
Trade-In Appraisal
Make an Offer
Request More Info
X

Standard Specifications

ENGINE
  • Engine Type: Single-Cylinder
  • Cylinders: 1
  • Engine Stroke: 4-Stroke
  • Horsepower (bhp): 58
  • Horsepower (kW): 43.3
  • Cooling: Liquid
  • Valves: 4
  • Valves Per Cylinder: 4
  • Valve Configuration: DOHC
  • Bore (mm): 88
  • Bore (in): 3.46
  • Stroke (mm): 57.5
  • Stroke (in): 2.26
  • Displacement (cc): 349.7
  • Displacement (ci): 21.3
  • Compression Ratio: 14.2:1
  • Starter: Electric
  • Fuel Requirements: Premium
  • Fuel Type: Gas
TRANSMISSION
  • Transmission Type: Manual
  • Number Of Speeds: 6
  • Overdrive: Yes
  • Primary Drive (Rear Wheel): Chain
  • Gear Ratio (1): 2.07
  • Gear Ratio (2): 1.56
  • Gear Ratio (3): 1.25
  • Gear Ratio (4): 1.05
  • Gear Ratio (5): 0.88
  • Gear Ratio (6): 0.77
  • Final Drive Ratio: 3.57
  • Transmission Brand: Pankl
WEIGHT
  • Dry Weight (lbs): 220.9
  • Dry Weight (kg): 100.2
PERFORMANCE
  • Engine Displacement to Weight (cc): 1.58
FOOT PEGS
  • Foot Peg Location: Driver
  • Adjustable: Yes
STAND
  • Stand Type: Service
REAR SUSPENSION
  • Rear Suspension Type: Twin Sided Swing Arm
  • Rear Travel (in): 11.8
  • Rear Travel (mm): 300
  • Rear Adjustable Shock / Spring Pre-Load: Yes
  • Rear Adjustable Rebound Damping: Yes
  • Number Rear Shock Absorbers: 1
  • Rear Suspension Brand Name: WP XACT
  • Rear Suspension Material: Aluminum
TIRES
  • Tire Brand: Dunlop®
  • Front Tire Width: 80
  • Front Tire Aspect Ratio: 100
  • Front Tire Speed Rating: M
  • Front Wheel Diameter: 21
  • Rear Tire Width: 110
  • Rear Tire Aspect Ratio: 100
  • Rear Tire Speed Rating: M
  • Rear Wheel Diameter: 18
  • Front Tire (Full Spec): Dunlop® GEOMAX AT81 80/100 R21 51M
  • Rear Tire (Full Spec): Dunlop® GEOMAX AT81 110/100 R18 64M
SEATS
  • Seat Type: One-Piece
  • Seat Material: Vinyl
  • Seat Location: Driver
FUEL LEVEL WARNING
  • Fuel Level Warning Type: Light
STEERING
  • Steering Control: Handlebar
HEATED HAND GRIPS
  • Heated Hand Grip Location: Driver



CARBURETION
  • Carburetion Brand: Keihin
  • Fuel Injector: Yes
  • Fuel Injector Size (mm): 44
  • Carburetion Type: Fuel Injected
TECHNICAL SPECIFICATIONS
  • Wheelbase (in): 58.5
  • Wheelbase (mm): 1485
  • Ground Clearance (in): 14.6
  • Ground Clearance (mm): 370
CAPACITIES
  • Fuel Capacity (gal): 3
  • Fuel Capacity (l): 11.5
  • Fuel Capacity Reserve (gal): 0.4
  • Fuel Capacity Reserve (l): 1.5
EXTERIOR
  • Frame: Chromium Molybdenum
  • Body Material: Plastic
EXTERIOR GUARDS
  • Fork Guards: Yes
  • Hand Guards: Yes
  • Exhaust Guard: Yes
  • Chain Guard: Yes
  • Tank Guard: Yes
SUSPENSION
  • Front Suspension Type: Inverted Fork
  • Front Suspension Size (in): 1.9
  • Front Suspension Size (mm): 48
  • Front Travel (in): 12.2
  • Front Travel (mm): 310
  • Front Adjustable Rebound Damping: Yes
  • Front Suspension Brand Name: WP XACT
WHEELS & TIRES
  • Wheels Composition: Aluminum
  • Tube / Tubeless: Tubed
  • Front Wheel Width (in): 1.6
  • Rear Wheel Width (in): 2.15
BRAKES
  • Brake Brand Name: Brembo®
  • Front Brake Type: Hydraulic Disc
  • Front Brake Diameter (in): 10.2
  • Front Brake Diameter (mm): 260
  • Rear Brake Type: Hydraulic Disc
  • Rear Brake Diameter (in): 8.7
  • Rear Brake Diameter (mm): 220
SEAT SPECIFICATIONS
  • Seat Height (in): 37.8
  • Seat Height (mm): 960
  • Number Of Seats: 1
PAINT
  • Primary Color: Orange
  • Secondary Color: White
  • Paint Swatch File Name: KTM/Orange_-_White.gif
HEADLIGHTS
  • Type: Halogen
